The Universal Light Driver Controller (ULDC) is an easily installed and highly flexible dimmer for residential LED lighting applications. The ULDC-T gives you the freedom to wirelessly control your dimmable lights from anywhere, even allowing for multi-way control of a single lighting zone. Designed with the installer in mind, the ULDC-T simplifies wiring and installation for both retrofits and new construction.

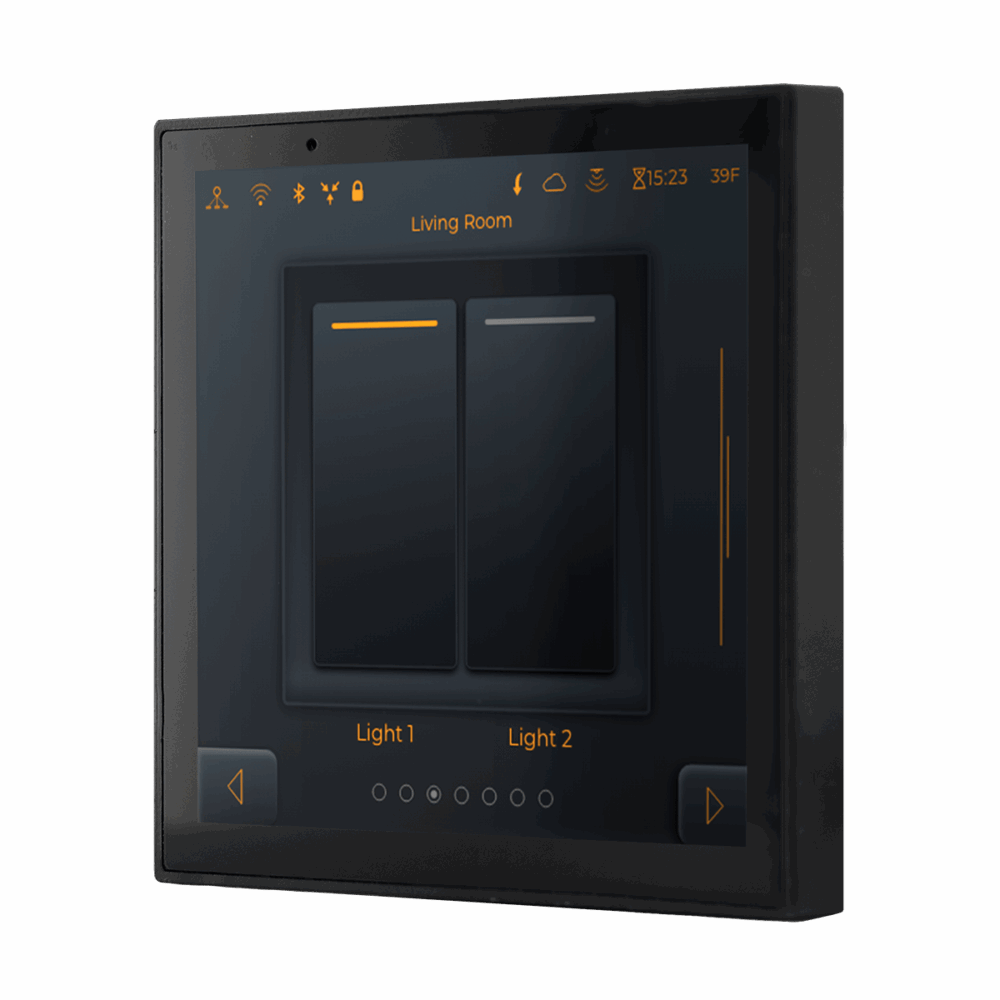

Universal wall mounted lighting controller UWMC-Z04 is a highly integrated device with an 480 pixels by 480 pixels LCD display attached to a powerful computing platform. It also has power management functions and is powered from a 110V to 220V supply.
The wall mounted controller fits in the standard double gang switch opening; it can replicate the on/off function of double gang lighting switches for up to 200 W of power from each relay output.
As the controller is powered from an AC supply, a neutral connection is required. The L line input, L1 and L2 load outputs should share the same neutral N while installing the controller unit. When the power is applied for the first time to this controller, a proprietary application automatically launches and governs not only the configuration of the controller, but also navigates the user who is installing the lighting system through the setup of the zone and the load controllers for the lighting fixtures.
Item | Specification |
Supply | 100 ~ 240 VAC, 50/60Hz |
Screen | 4 inch, 480 X 480 pixels, multi-touch IPS (responsive screen with wide viewing angle) |
Ethernet | 10M / 100M Adaptive |
RS485 | Half-duplex over 3.81mm terminals |
Relay Load Capacity | L1, L2 <=200 W each |
Wireless Protocols | Proprietary 2.4GHz ISM Band |
Working Temperature | 32˚F ~ 104˚F |
Working Humidity | 5% ~ 90% RH |
| Wall Mounted Display Dimensions | ||
|---|---|---|
| Overall Mounting Cavity Size on Mud: | ||
| 3 3/16 “ | 3 3/16 “ | 1 ½” |
| 81mm | 81mm | 36mm |
| Mud Thickness: | ||
| 0.2” (5mm) | ||
| Mounting Cavity size below Mud: | ||
| 3″(77mm)) | ||
| LCD Face Size: | ||
| 3 3/8 “ | 3 3/8 “ | 7/16” |
| 86mm | 86mm | 11mm |

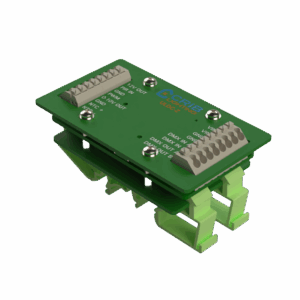

Connect LED Driver Controller (ULDC) hardware to one or more lighting fixtures, wirelessly connect to the ULDCs from the wall units to control the state and dimming level of your lighting fixtures.
CRIB’s ULDC-T can receive control signals wirelessly from the gateway/wall unit; as well as over-the-air updates for firmware.
The ULDC also accepts wired connections, using Modbus protocols over RS-485
Install multiple ULDCs within range of your wall mounted controller(s). Set up the ULDCs you want to control, which simultaneously link with your lighting fixture(s). Once setup is complete, you can control the lights in the zone individually per ULDC, or you can control multiple ULDCs at once.
Whether you are using single-way or multiple-way controls, the CRIB Lighting user interface allows you to set custom scenes for different times of the day, and different zones/groups of lights. Have your bedroom lights gradually increase when you wake up, manage dimming levels throughout the day, or set different configurations for different zones.
For ULDC models including a PIR sensor, the CRIB Lighting user interface allows you to enable/disable occupancy controls, regulate different dimming intensities for motion detected/undetected, or manage the time delay after motion is detected.
One or more wall mounted controllers can co-exist in a given zone for multi-way controls. Its user interface is user friendly with minimal cognitive load and at the same time, the UI adapts to the ambient conditions such as the lighting level in the zone. Although there is not much room for improvement, we are always open to customizing the UI for this controller to fit your exact needs.
