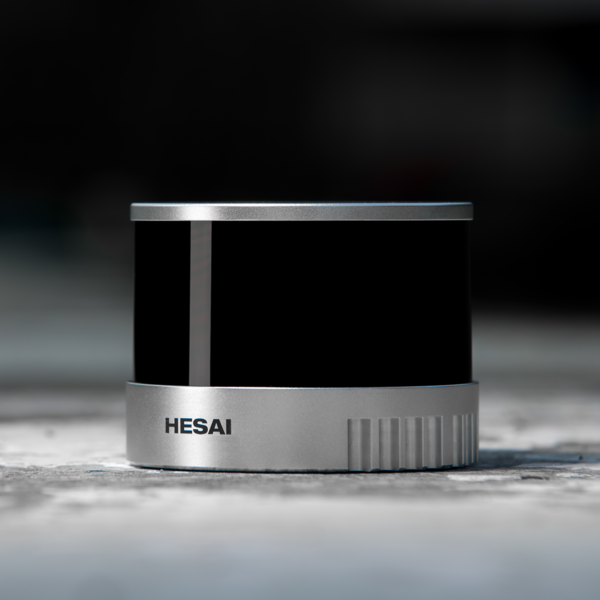

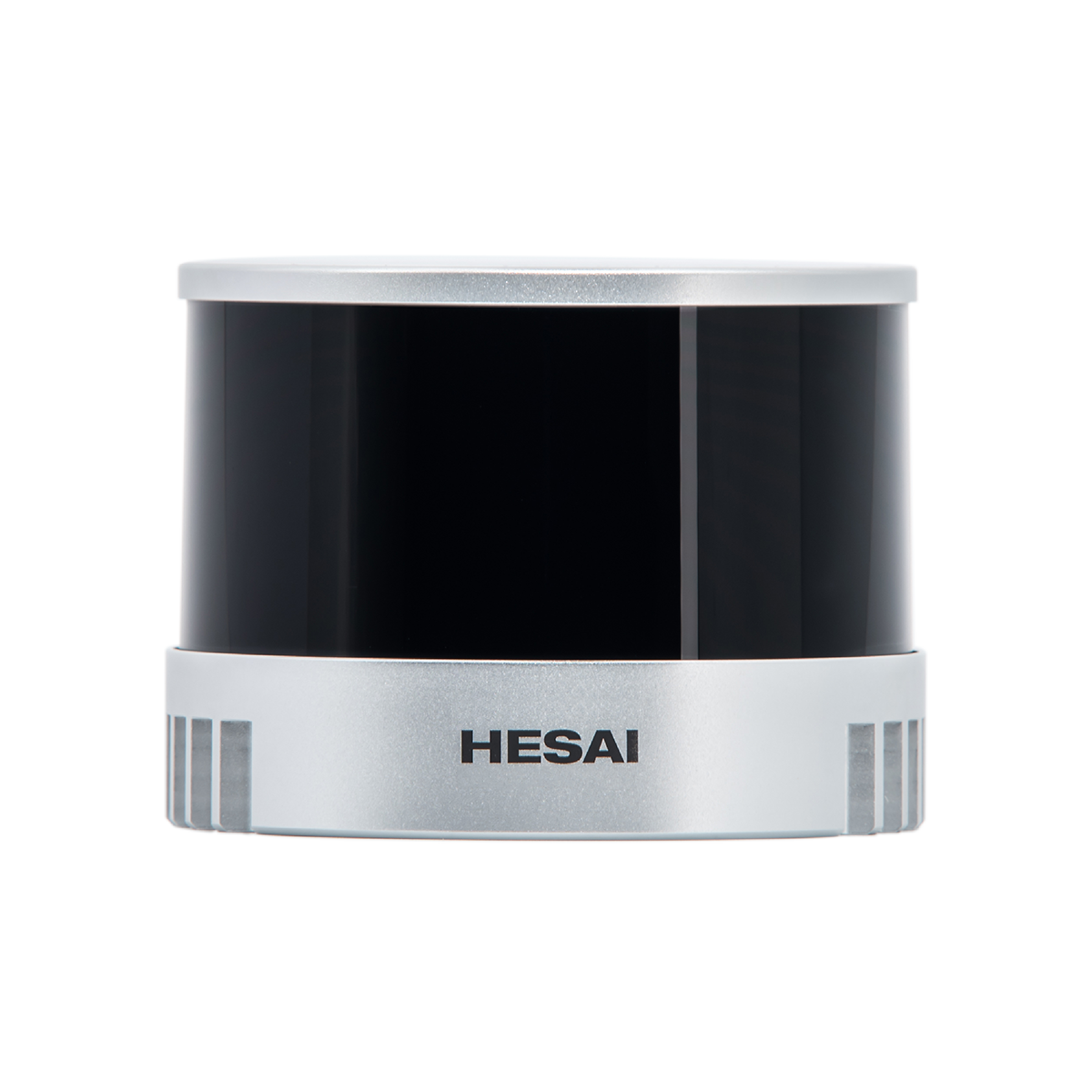

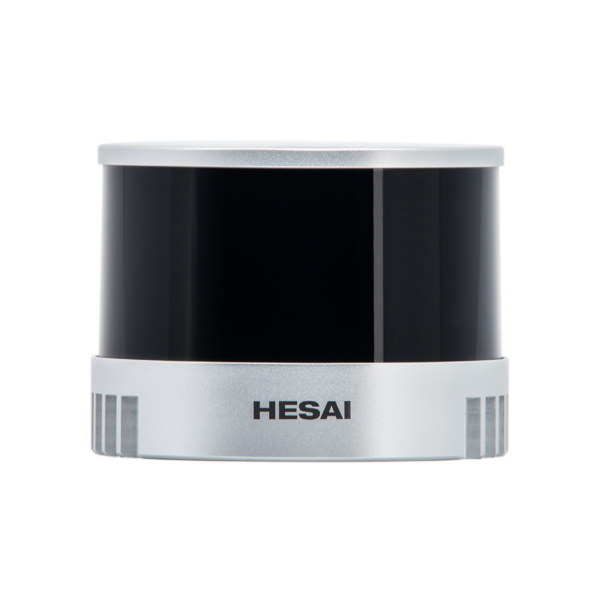

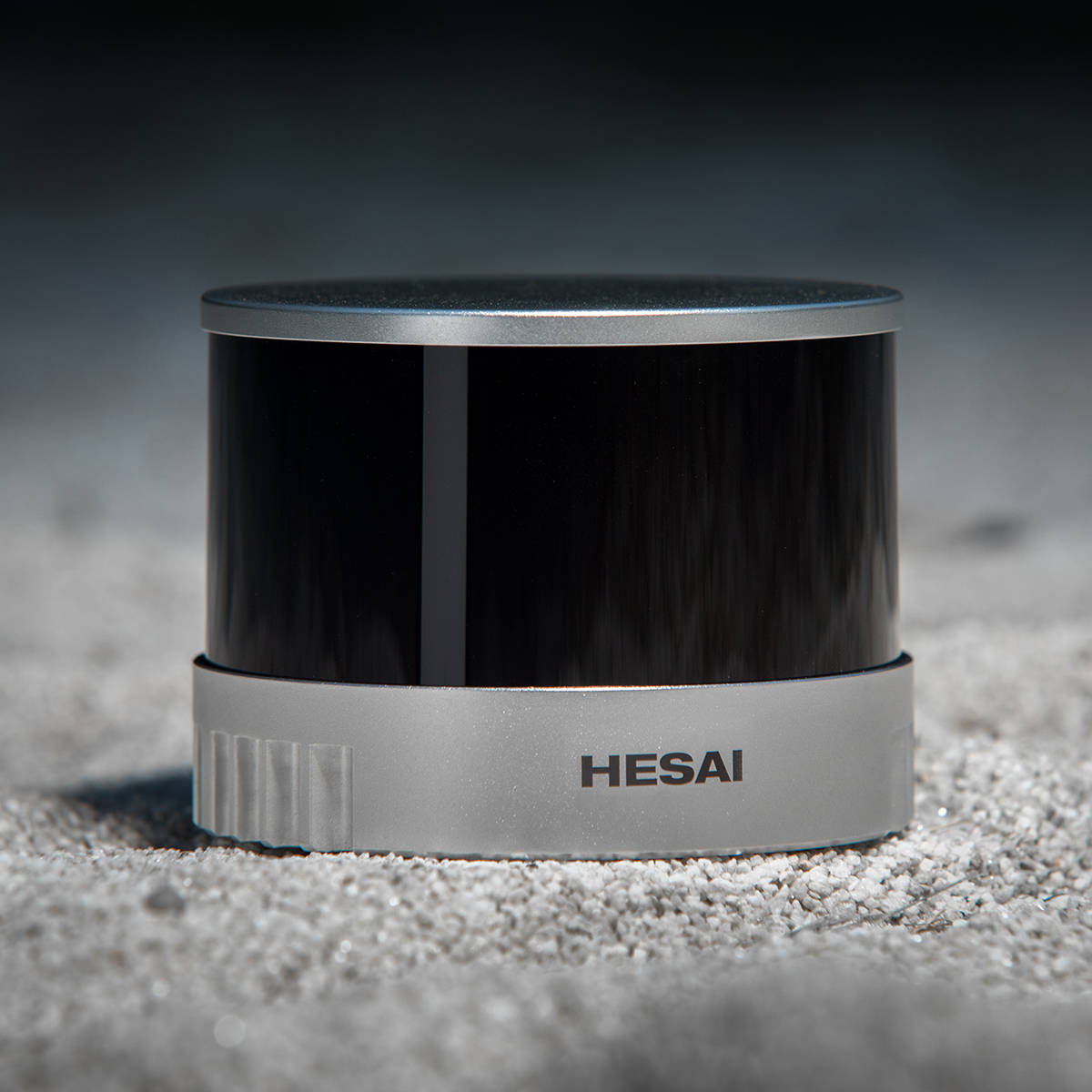

HESAI XT32 Mid Range High Accuracy Mapping and Survey Lidar Sensor

32-Channel 360° Spinning Mid-Range Lidar
High Precision. Minimum Range of Zero. Cost Efficient

32-Channel 360° Spinning Mid-Range Lidar
High Precision. Minimum Range of Zero. Cost Efficient

Minimum Range of Zero

Objects can be effectively detected even if directly touching the sensor’s enclosure; blind range of zero.

Mid-Range Lidar

XT32

*The appearance of products published on this website may vary due to screen display settings, production batches, and customization. Please refer to the actual sample/product; The product specifications shown on this website are typical values under specific test conditions and may slightly vary due to production batches, firmware and hardware versions, as well as application conditions. Please refer to final factory inspection. For product certification information, please refer to official certifications. Hesai reserves the right of final interpretation of the information on this website. *Please read the relevant safety precautions before using the product.

0.05 ~ 120 m

Ranging Capability

0.5 cm 1σ

Range Precision

±1 cm

Accuracy

640,000 [Single Return]

Point Rate

360° x 31°

Field of View

0.18° (H) x 1° (V)

Angular Resolution

Φ 76 x H 103.2 mm

Dimensions

800 g

Weight

UV Aging

High-Temperature

IPX7

Mechanical Shock

Salt Spray

Thermal Shock with Water Splash

Low-Temperature Wakeup

Humid Heat Cyclic

Vibration with Thermal Cycling

Electrical & Electronic Test

Class 1 Eye Safety

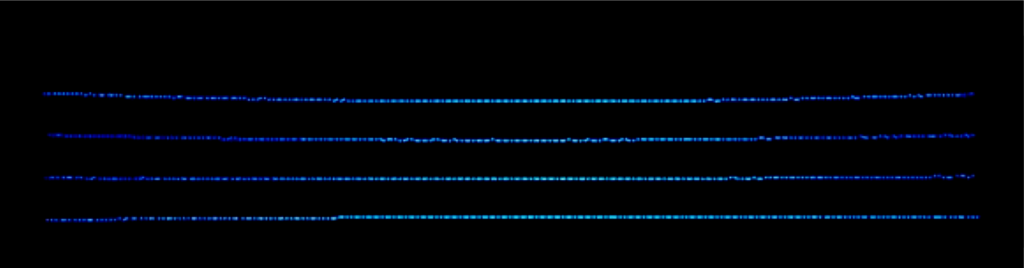

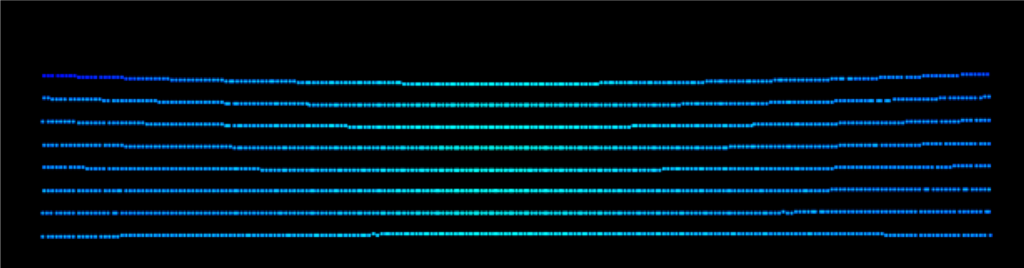

Higher Resolution, Further Range

Double the resolution and number of lasers compared with typical mid-range lidars (16 channels).

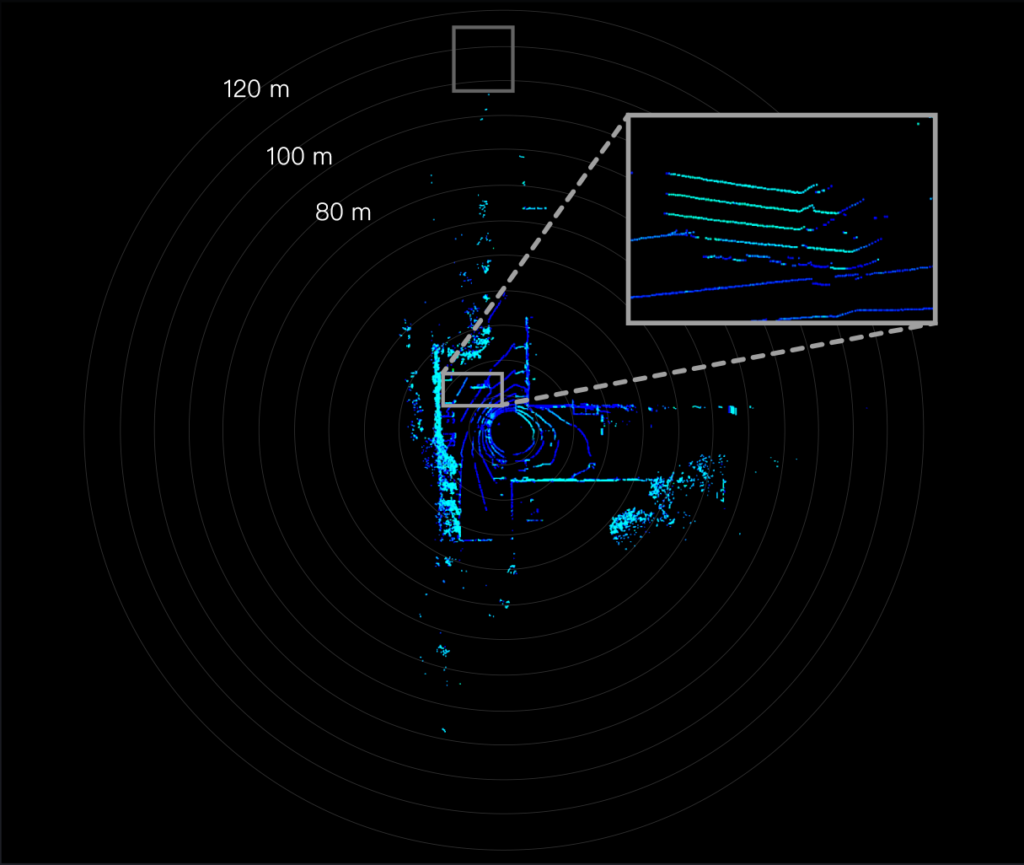

Range detection up to 120m, POD>90% when detecting 10% reflectivity targets at 80 m.

XT32

The truck’s distance is ~15 m

Typical 16-channel lidar

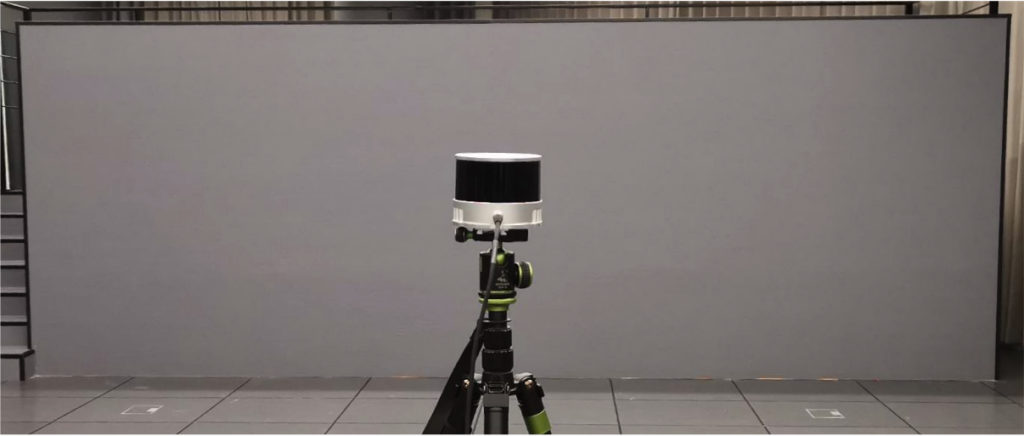

High Precision

XT32

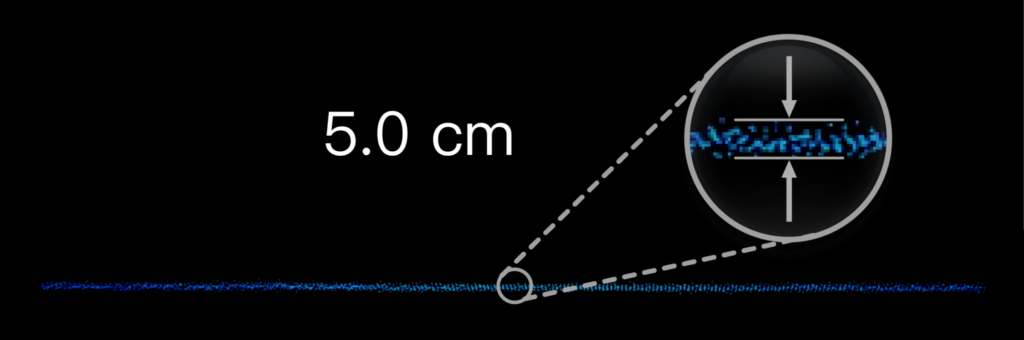

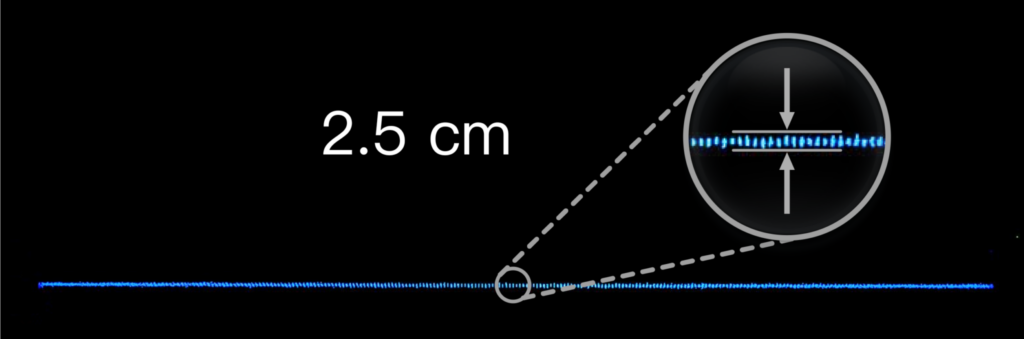

The thickness of a wall at 6 m scanned by XT32 is approximately half of the generic lidar's. Peak-to-peak thickness is 2.5cm; corresponding precision (1σ) is ~0.5 cm.
