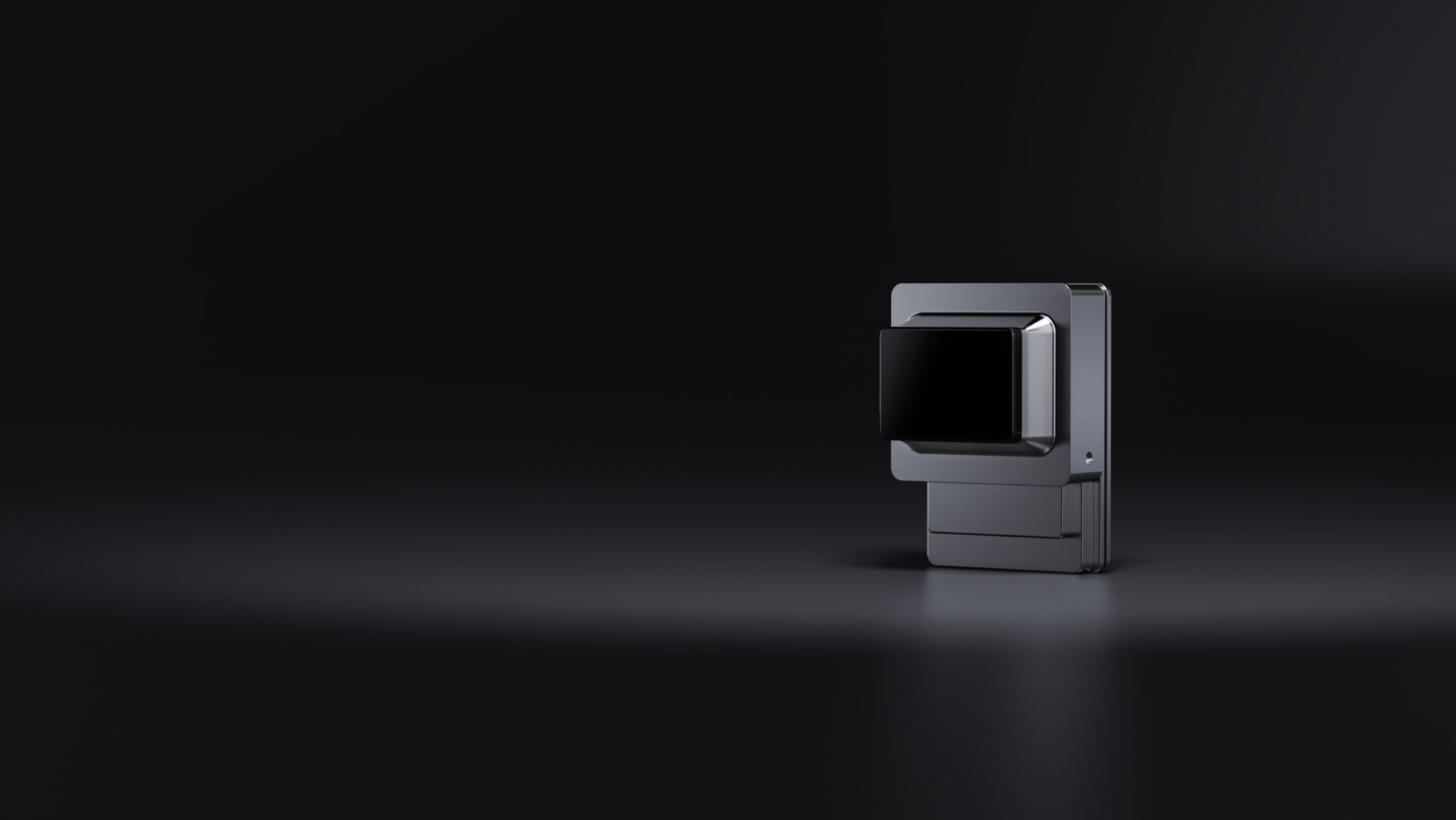

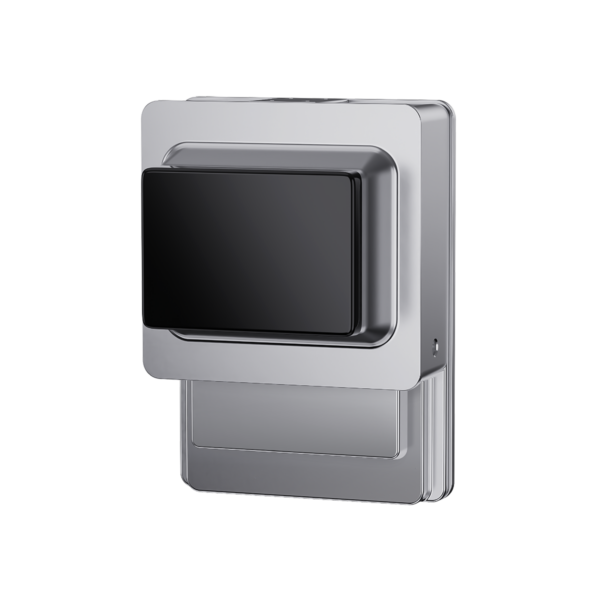

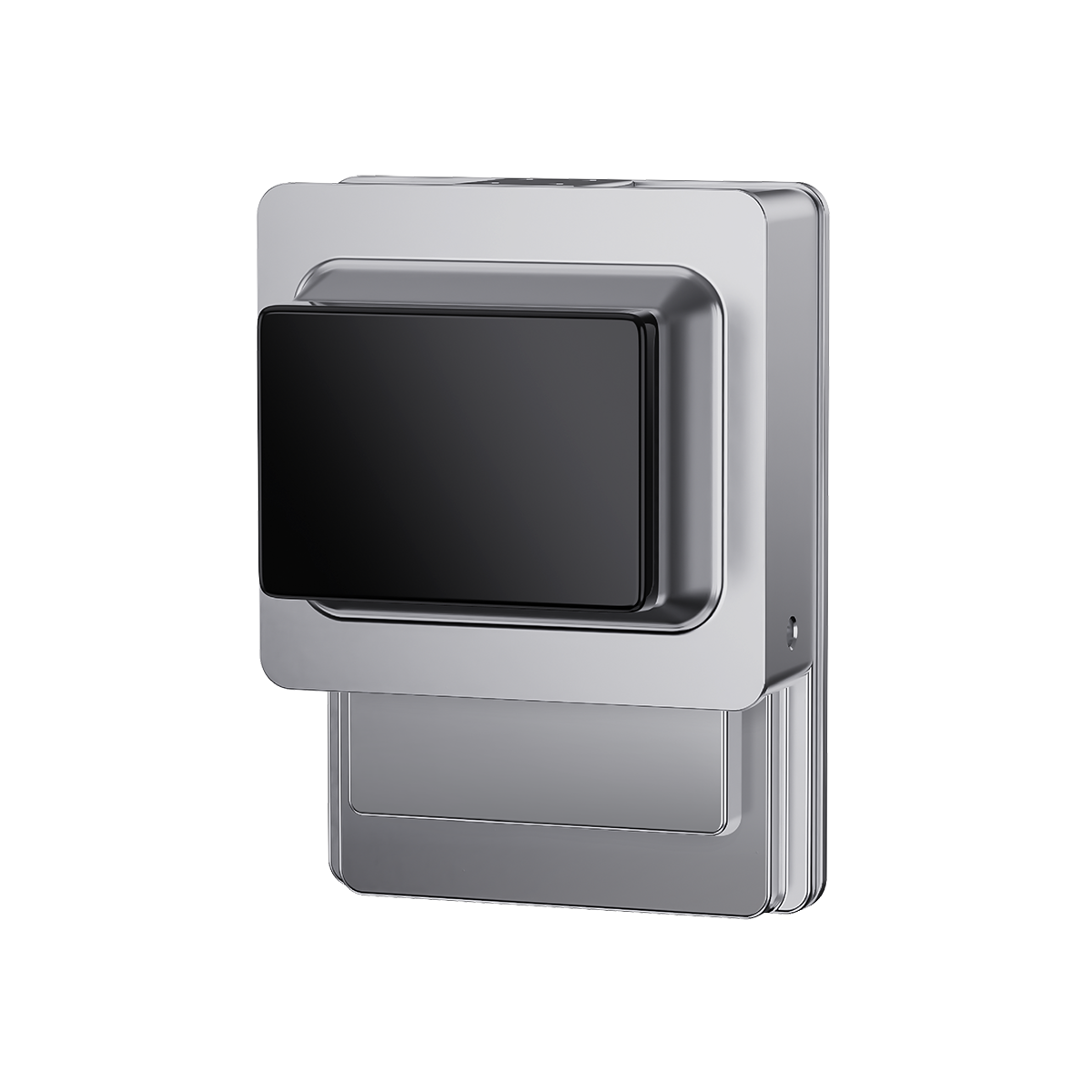

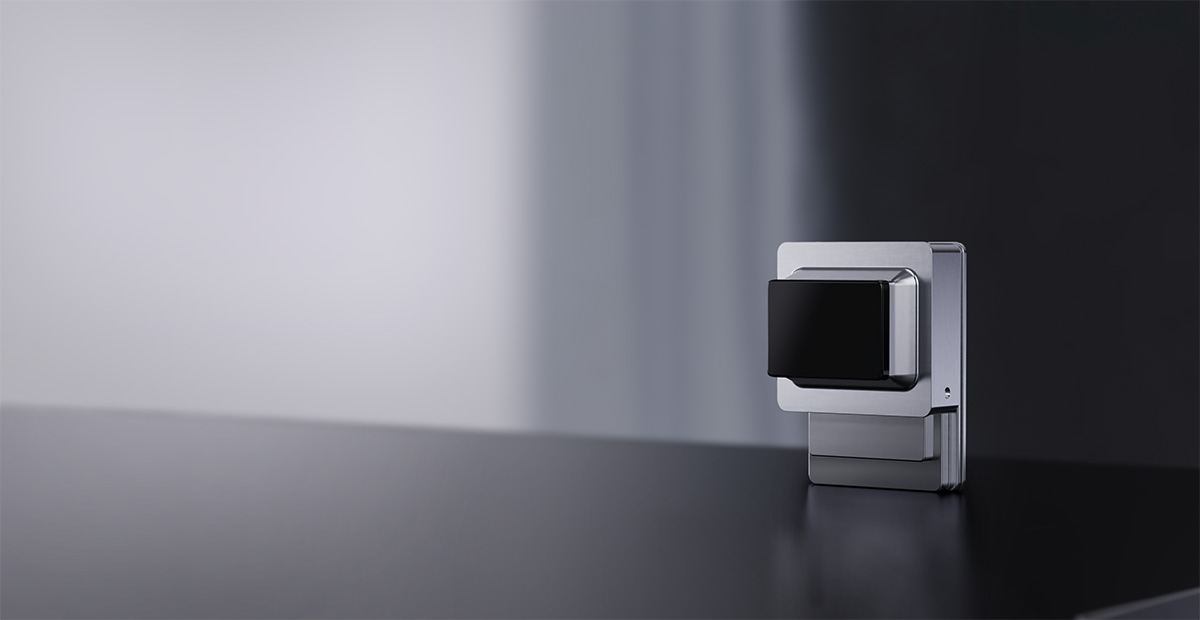

HESAI FT120 Short Range Blind Spot Detection Lidar Sensor

Auto-Grade Full Solid-State
Near-Range Blind Spot Lidar

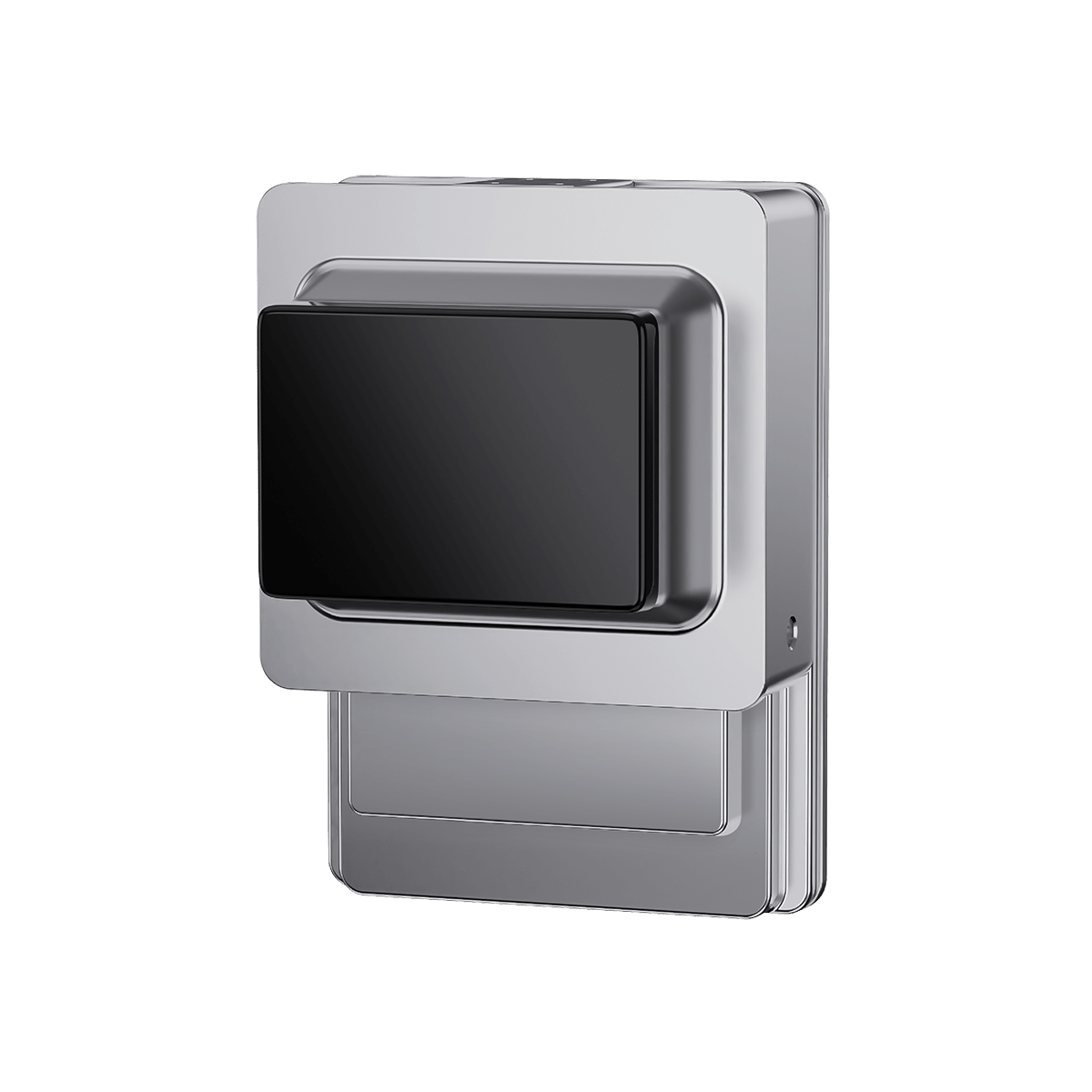

HESAI FT120 Short Range Blind Spot Detection Lidar Sensor

HESAI FT120 Short Range Blind Spot Detection Lidar Sensor

Auto-Grade Full Solid-State
Near-Range Blind Spot Lidar

Fully Solid-State E-Scanning

Greater Performance, Higher Reliability, Designed for Series Production

Small and Compact, All-Around Perception

100° x 75° ultra-wide FOV, zero blind spot, providing real-time perception of small objects, tall street signs, pavement markings and more.

Key Specifications

Instrument Range

0.1 m ~ 100 m

Pixel Resolution

160 (H) x 120 (V)

Angular Resolution

0.625° (H) x 0.625° (V)

FOV

100° (H) x 75° (V)

Point Rate(@10 Hz)

192,000 pts/s (single return) 384,000 pts/s (dual return)

Frame Rate

Typ. 10 Hz

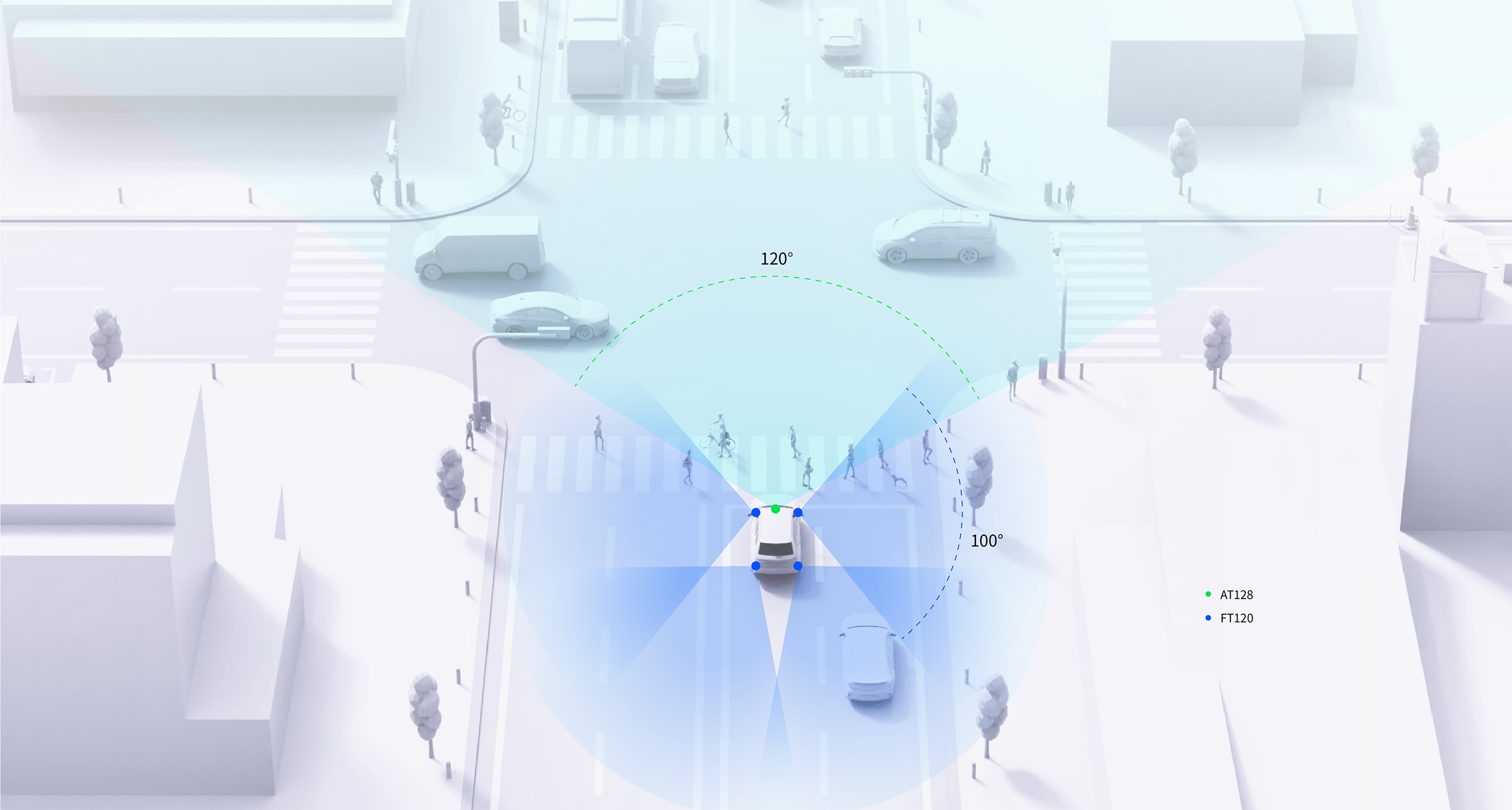

AT + FT Auto-Grade Lidar Full Solution

Long and short range combination, providing all-around 3D perception for the vehicle.

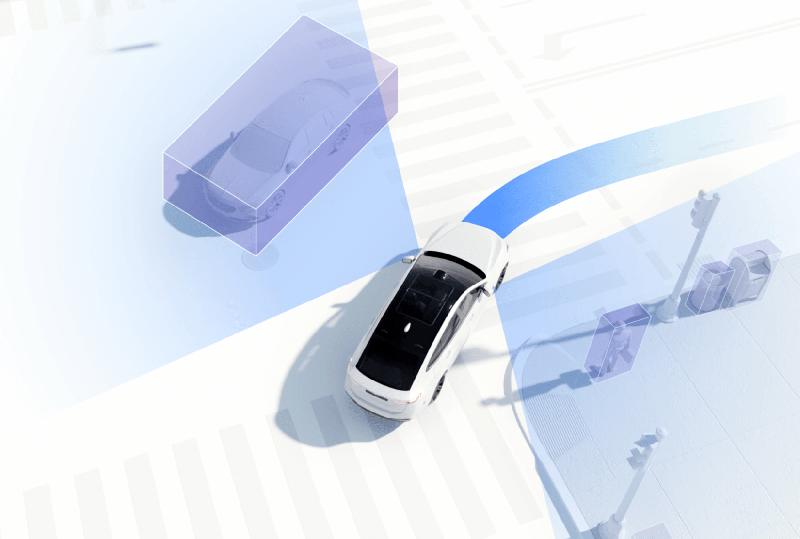

Turning

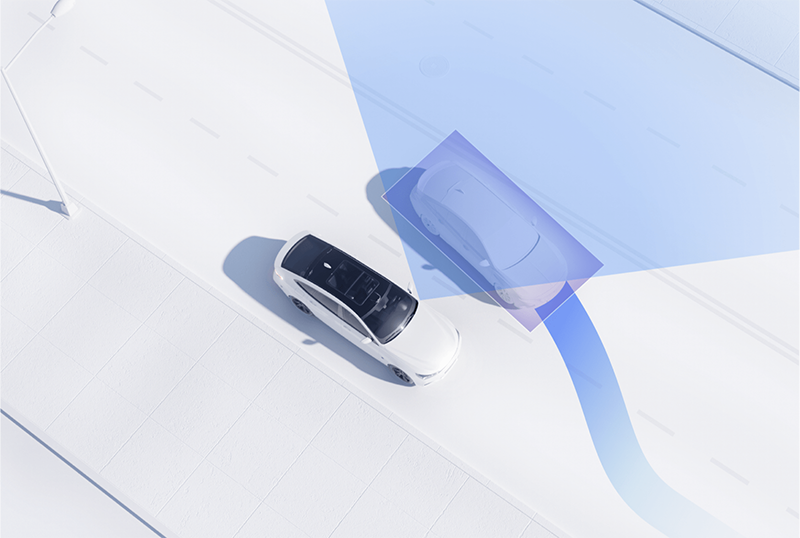

Overtaking

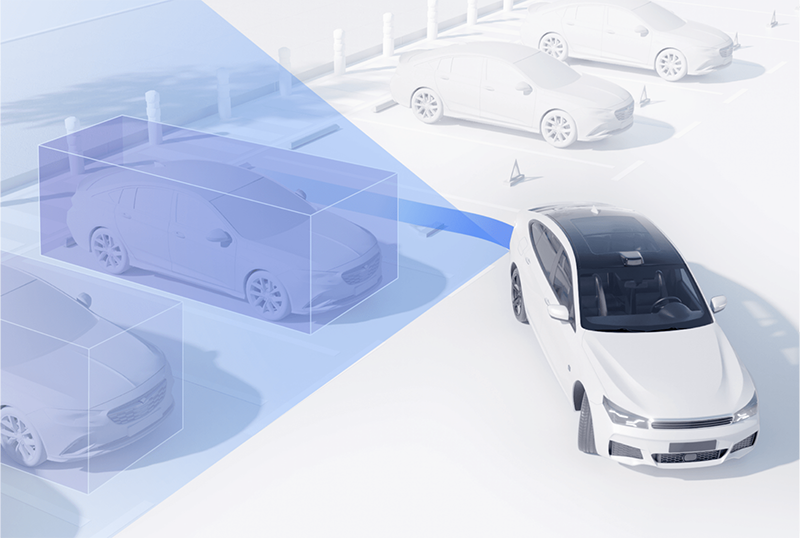

Autonomous Parking

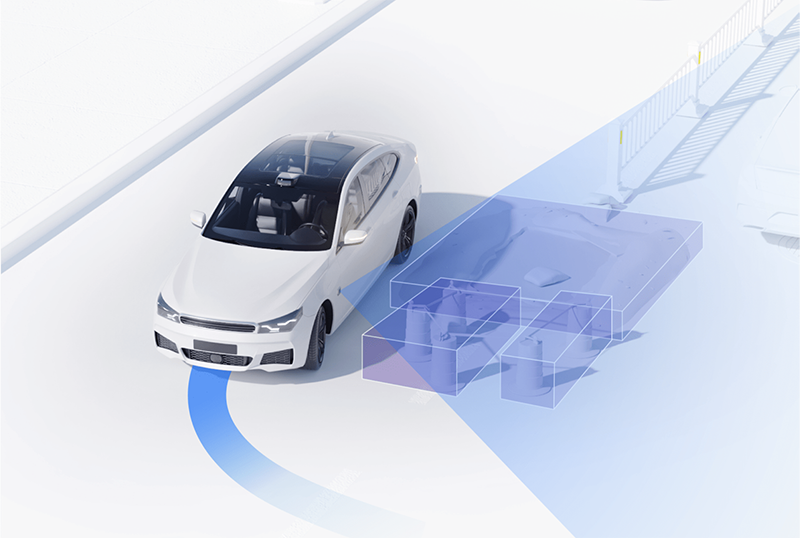

Detecting Small Objects

Real Point Cloud

Eliminating blind spots for intelligent vehicles.
